Automatic Weather Station [5 in 1 ]

₹ 90000.00 ₹ 100000.00 10%off
In Stock

Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. AWS Compact series all model comes with the tripod stand, solar panel and battery an intelligent solar and AC power circuit make the system self-powered.

  • Category : Weather Station
  • Model Number : BHMcompact5in1
  • Brand : Balaji Hydromet
  • Automatic Weather Station [5 in 1 ]

    Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Model BHM-Compact-5 in1 data Logger having the facility of the measuring the Temperature, Wind Speed, Wind Direction, Relative Humidity and Rainfall, Dew Point calculated.All the above model measuring the Data logger for the collection of real time data automatically. 16 X 2 alphanumeric display and 1 X 4 keypad is provided at front of data logger for programming data logger and monitoring sensor reading at site without the help of computer.

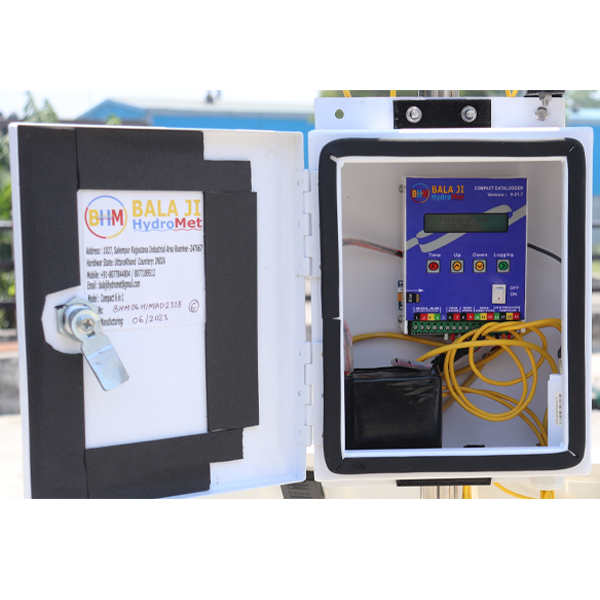

  • DATA LOGGER -VIEW

    Model Compact-datalogger version v-21.7
    Display 16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button)
    Measured Parameter Date, Time, Air Temp. (°C), Max Air Temp.(°C), Min Air Temp. (°C), RH (%), Max RH (%), Min RH (%), Wind Speed (m/s), Maximum wind speed (m/s), average wind speed (m/s), Wind Direction (Deg), Rainfall (mm), Dew Point (°C), Battery (volts)
    Real Time Clock Stability long-term: ±1 ppm / year Stability (temperature): ±3.5 ppm or better form -40° to 85°C
    Logging Rate 1 min to 1 hours
    Data Storage 16 GB (sufficient for more than 5 years of logging in 1 min. logging rate)
    Logger Power supply 5 volts
    RTC Battery Life < 5 years in continuous operation
    Clock accuracy ±5 seconds per year
    Keypad 1 x 4 on front of the datalogger programming and check the sensors Realtime reading
    Logger Programming Through given keypad in front of the logger
    IP rating IP 65
    Operating Temp. -40°C to 75 °C
    Operation Humidity 0 to 95% no-condensing
    Data Retrieval SD Card and RS 485 (Optional) No need of any software direct copy and past
    Data Transmission GPRS telemetry OR WIFI in IOT (optional)
    Watchdog timer System Reset Upon Microprocessor Failure
    Weatherproof Encl. IP 67 weatherproof enclosure provides Optional
    Model BHM-COMPACT-BAT
    Output Voltage 5 Volts DC
    Protection Reverse Polarity Battery over Charge Protection Battery over Discharged Protection
    Battery Charging Provided Inbuild solar charging Circuit through solar panel (6 V, 6 watts) provided with standard OR 220 volts AC supply (optional)
    Battery Life More than 2 years
    Battery Voltage & Amp 5 volts and 20 AMP
    Advance Feature Soft Start Charging or good health of battery Battery Temperature measurement inside Disconnect charging when temperature of batter goes high than normal
    Measuring range temperature -40° C to 123 ° C
    Measuring humidity 0 to 100 %
    Accuracy temperature ± 0.3 ° C @ 5 to 40° C
    Accuracy rel. humidity ± 2% @ 20 to 80 %
    Weather shield IP 65 provided
  • Water Resource Managements
    Meteorological
    Hydrometeorological
    Water Treatments, Dams & Reserviors
    Environmental, Hydrological & Air Quality Monitoring
  • Ordering Information

    BHM-compact-Datalogger DATALOGGER
    BHM-S-TH Temperature and Humidity Sensor
    BHM-S-WS Wind Speed Sensor
    BHM-S-WD Wind Direction Sensor
    BHM-S-TBRG-5 Rainfall Sensor
    BHM-A-SSS Stainless Steel Stand
    BHM-A-SP Solar Panel
    BHM-compact-BAT Battery with charging
