Standard Rain Gauge

To Get Product Price Request a Quote

Product Availability: In Stock

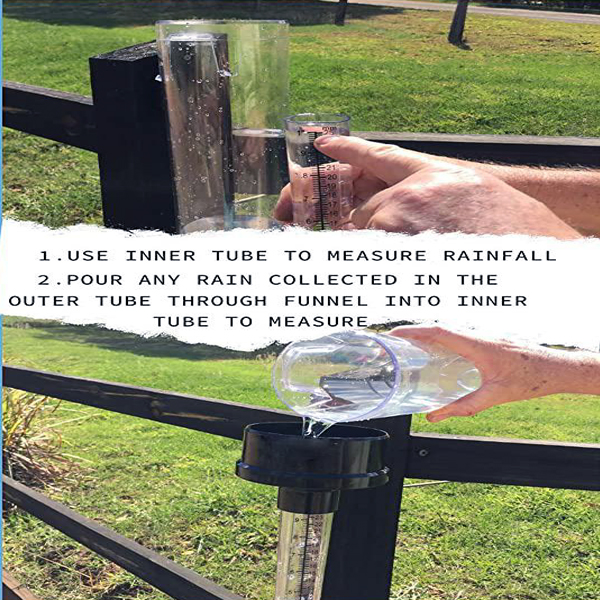

The [BHM-M-SRG-4”] (metric graduations) measures up to 11" (280 mm) of precipitation and is made of clear, tough Acrylic. The internal measuring tube, with a capacity of 1" (25 mm), is graduated to 0.01" or 0.2 mm. Precipitation greater than 1" overflows into the outer cylinder and is measured by pouring into the measuring tube. The receiving funnel and measuring tube are removed for collection of snow. A sturdy, rust-proof mounting bracket is included with the gauge.

Category : Rain Gauge
Model Number : BHM-M-SRG-4”
Brand : Balaji Hydromet

Standard Rain Gauge

Manual Rain Gauge

The [BHM-M-SRG-4”] (metric graduations) measures up to 11" (280 mm) of precipitation and is made of clear, tough Acrylic. The internal measuring tube, with a capacity of 1" (25 mm), is graduated to 0.01" or 0.2 mm. Precipitation greater than 1" overflows into the outer cylinder and is measured by pouring into the measuring tube. The receiving funnel and measuring tube are removed for collection of snow. A sturdy, rust-proof mounting bracket is included with the gauge.

Model	BHM-M-SRG-4”
Rain Gauge Diameter	4” or (101 mm)
Capacity	280 mm of rain fall
Standard	As per National Weather Services
Resolution	Both in 0.20 mm and 0.01 inches
Size	4" dia x 14" H (102 mm x 356 mm)
Weight	2 lbs/4 lbs (0.9 kg/1.8 kg)
Mounting	Through the clamp arrangement
Chart	A Rainfall year chart comes with the rain gauge

Water Resource Managements

Meteorological

Hydrometeorological

Water Treatments, Dams & Reserviors

Environmental, Hydrological & Air Quality Monitoring
