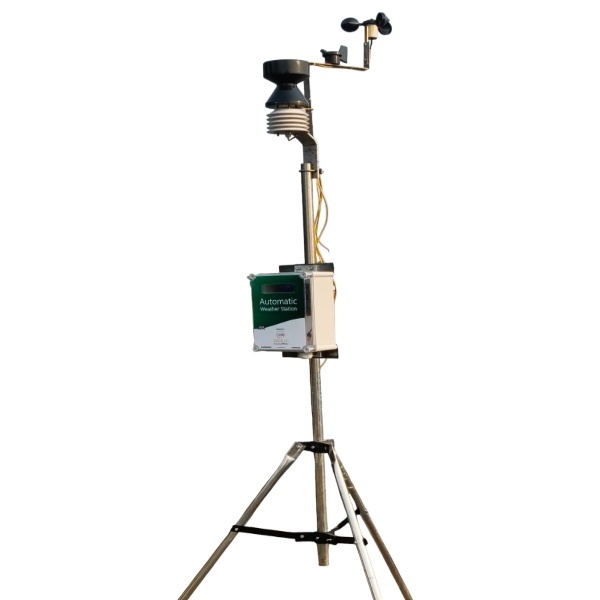

Automatic Weather Station [5 in 1 ]

₹ 90000.00 ₹ 100000.00 10%off
In Stock

Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. AWS Compact series all model comes with the tripod stand, solar panel and battery an intelligent solar and AC power circuit make the system self-powered.

  • Category : Weather Station
  • Model Number : BHMcompact5in1
  • Brand : Balaji Hydromet
  • Automatic Weather Station [5 in 1 ]

    Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Model BHM-Compact-5 in1 data Logger having the facility of the measuring the Temperature, Wind Speed, Wind Direction, Relative Humidity and Rainfall, Dew Point calculated.All the above model measuring the Data logger for the collection of real time data automatically. 16 X 2 alphanumeric display and 1 X 4 keypad is provided at front of data logger for programming data logger and monitoring sensor reading at site without the help of computer.
  • ModelCompact-datalogger version v-21.7
    Display16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button)
    Measured ParameterDate, Time, Air Temp. (°C), Max Air Temp.(°C), Min Air Temp. (°C), RH (%), Max RH (%), Min RH (%), Wind Speed (m/s), Maximum wind speed (m/s), average wind speed (m/s), Wind Direction (Deg), Rainfall (mm), Dew Point (°C), Battery (volts)
    Real Time ClockStability long-term: ±1 ppm / year Stability (temperature): ±3.5 ppm or better form -40° to 85°C
    Logging Rate1 min to 1 hours
    Data Storage16 GB (sufficient for more than 5 years of logging in 1 min. logging rate)
    Logger Power supply5 volts
    RTC Battery Life< 5 years in continuous operation
    Clock accuracy±5 seconds per year
    Keypad1 x 4 on front of the datalogger programming and check the sensors Realtime reading
    Logger ProgrammingThrough given keypad in front of the logger
    IP ratingIP 65
    Operating Temp.-40°C to 75 °C
    Operation Humidity0 to 95% no-condensing
    Data RetrievalSD Card and RS 485 (Optional) No need of any software direct copy and past
    Data TransmissionGPRS telemetry OR WIFI in IOT (optional)
    Watchdog timerSystem Reset Upon Microprocessor Failure
    Weatherproof Encl.IP 67 weatherproof enclosure provides Optional
    ModelBHM-COMPACT-BAT
    Output Voltage5 Volts DC
    ProtectionReverse Polarity Battery over Charge Protection Battery over Discharged Protection
    Battery ChargingProvided Inbuild solar charging Circuit through solar panel (6 V, 6 watts) provided with standard OR 220 volts AC supply (optional)
    Battery LifeMore than 2 years
    Battery Voltage & Amp5 volts and 20 AMP
    Advance FeatureSoft Start Charging or good health of battery Battery Temperature measurement inside Disconnect charging when temperature of batter goes high than normal
    Measuring range temperature-40° C to 123 ° C
    Measuring humidity0 to 100 %
    Accuracy temperature± 0.3 ° C @ 5 to 40° C
    Accuracy rel. humidity± 2% @ 20 to 80 %
    Weather shieldIP 65 provided

    1. Water Resource Managements
    2. Meteorological
    3. Hydrometeorological
    4. Water Treatments, Dams & Reserviors
    5. Environmental, Hydrological & Air Quality Monitoring
  • Ordering Information

    BHM-compact-DataloggerDATALOGGER
    BHM-S-THTemperature and Humidity Sensor
    BHM-S-WSWind Speed Sensor
    BHM-S-WDWind Direction Sensor
    BHM-S-TBRG-5Rainfall Sensor
    BHM-A-SSSStainless Steel Stand
    BHM-A-SPSolar Panel
    BHM-compact-BATBattery with charging
