Visibility Sensor
To Get Product Price Request a Quote
In Stock
[BHM-S-VBS] is a low-cost visibility sensor working based on forward scattering principle developed. Main application is for traffic purposes. Aluminium alloy shell with spray-powder make it will never rust, applicable to drilling platforms, ships, highways and other transport sector. Using so called forward-scattering technique it measures the number of the amount particles in the air that limit the visibility. It emits pulses of infrared light and measures the intensity of the forward-scattered light of the suspended particles in the atmosphere, using suitable algorithms to convert the measurements to meteorological visibility.
- Category : Highway / Road Sensor
- Model Number : BHM-S-VBS
- Brand : Balaji Hydromet
-
Visibility Sensor
[BHM-S-VBS] is a low-cost visibility sensor working based on forward scattering principle developed. Main application is for traffic purposes. Aluminium alloy shell with spray-powder make it will never rust, applicable to drilling platforms, ships, highways and other transport sector. Using so called forward-scattering technique it measures the number of the amount particles in the air that limit the visibility. It emits pulses of infrared light and measures the intensity of the forward-scattered light of the suspended particles in the atmosphere, using suitable algorithms to convert the measurements to meteorological visibility. -

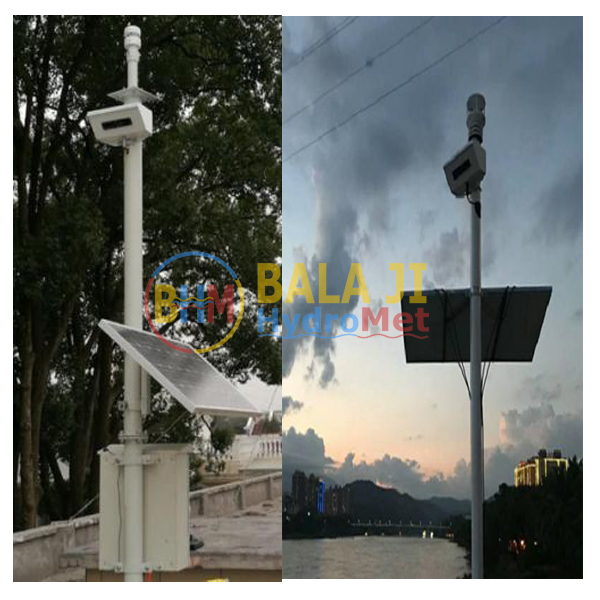

Sensor View
Model BHM-S-VBS Visibility 10 ~ 6000 meters Resolution 1 meter Accuracy Accuracy Serial Output RS232 or RS485 Analog output 4-20mA or 0-5V(with extra cost) Formats ASCII active output, NMEA0183,MODBUS-RTU, SDI-12 Baud rate 1200 ~ 115200 bps Power Requirement 12-24 VDC Operating Temperature -40 ~ +70°C Protection Class IP65 Dimensions 280x180x90 mm Weight 4 kg -
For check the visibility on the roadFlexible output optionsHigh-performance and competitive priceCompact, lightweight packageSimple installation & maintenanceIntegrated heater for all-weather operation
-
Ordering Information
Model BHM-S-VBS Serial Output RS232 or RS485 Analog output 4-20mA or 0-5V(with extra cost) Power Requirement 12-24 VDC Dimensions 280x180x90 mm
