Surface Temperature Sensor

To Get Product Price Request a Quote

Product Availability: In Stock

Model [BHM-S-IRSTS] is a compact infrared temperature sensor. The optical analysis system is sited in a compact aluminium shell. A 90 ° adjustable mounting bracket allows an easy installation. It’s designed for industrial, outdoor 7/24 monitoring. Model [BHM-S-IRSTS] is compose of thermopile and a thermistor and working based a basic principle that all objects with a temperature above absolute zero emit electromagnetic radiation. The wavelengths and intensity of radiation emitted are related to the temperature of the object. By measuring the infrared radiation energy of their own, surface temperature can be obtained by Model [BHM-S-IRSTS].

Category : Highway / Road Sensor
Model Number : BHM-S-IRSTS
Brand : Balaji Hydromet

Surface Temperature Sensor

Model [BHM-S-IRSTS] is a compact infrared temperature sensor. The optical analysis system is sited in a compact aluminium shell. A 90 ° adjustable mounting bracket allows an easy installation. It’s designed for industrial, outdoor 7/24 monitoring. Model [BHM-S-IRSTS] is compose of thermopile and a thermistor and working based a basic principle that all objects with a temperature above absolute zero emit electromagnetic radiation. The wavelengths and intensity of radiation emitted are related to the temperature of the object. By measuring the infrared radiation energy of their own, surface temperature can be obtained by Model [BHM-S-IRSTS].

Sensor View

Model	BHM-S-IRSTS
Surface Temperature Measurement	-40~70?
Resolution	0.1?
Accuracy	±1?
Serial Output	RS485
Formats	MODBUS-RTU
Power supply	12-24 VDC
Protection Grade	IP 65
Measure distance(c)	2~13 meters
Measure area diameter(d)	c:d = 8:1

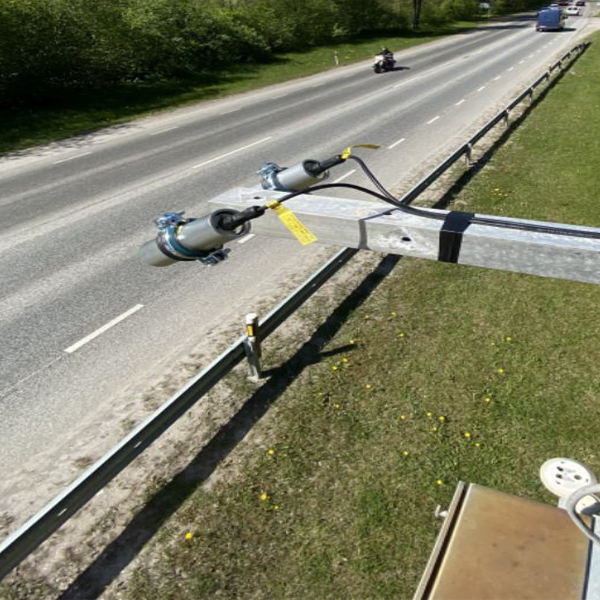

Pavement roadway surface temperature monitoring

Bridge surface temperature monitoring

Plant canopy temperature monitoring

Surface temperature monitoring of soil, snow cover, grass
