Standard Rain And Snow Gauge
Balaji HydroMet manufactures a National Weather Service (NWS) style Standard Rain and Snow Gauge, Model [BHM-M-SRG]. The Balaji HydroMet gauge differs from an actual NWS gauge in some of the design features and materials used. The Model BHM-M-SRG is constructed entirely of aluminium with the exception of the measuring stick. The total capacity of the gauge is twenty inches of rainfall. Rain is collected by the gauge's eight-inch diameter funnel and is directed into the Measuring tube. The diameters of the funnel and measuring tube and the capacity of the tube have been set to give a maximum of two inches of rainfall before the tube overflows into the larger measuring can. The measuring can also act as the body of the rain gauge. Water collected by the inner collection tube is easily measured by using the measuring stick as a dip stick. The amount of rainfall collected is read directly from the measuring stick scale.
- Category : Snow Gauge
- Model Number : BHM-M-SRG
- Brand : Balaji Hydromet
-
Standard Rain And Snow Gauge
Balaji HydroMet manufactures a National Weather Service (NWS) style Standard Rain and Snow Gauge, Model [BHM-M-SRG]. The Balaji HydroMet gauge differs from an actual NWS gauge in some of the design features and materials used. The Model BHM-M-SRG is constructed entirely of aluminium with the exception of the measuring stick. The total capacity of the gauge is twenty inches of rainfall. Rain is collected by the gauge's eight-inch diameter funnel and is directed into the Measuring tube. The diameters of the funnel and measuring tube and the capacity of the tube have been set to give a maximum of two inches of rainfall before the tube overflows into the larger measuring can. The measuring can also act as the body of the rain gauge. Water collected by the inner collection tube is easily measured by using the measuring stick as a dip stick. The amount of rainfall collected is read directly from the measuring stick scale. Whenever rainfall overflows into the measuring can, the reading is more involved. Water is poured from the measuring can into the smaller measuring tube and the reading is then made using the measuring stick. This process is repeated until all of the water inside the large tube has been measured. Care must be used to avoid any loss of the water during the pouring process. -

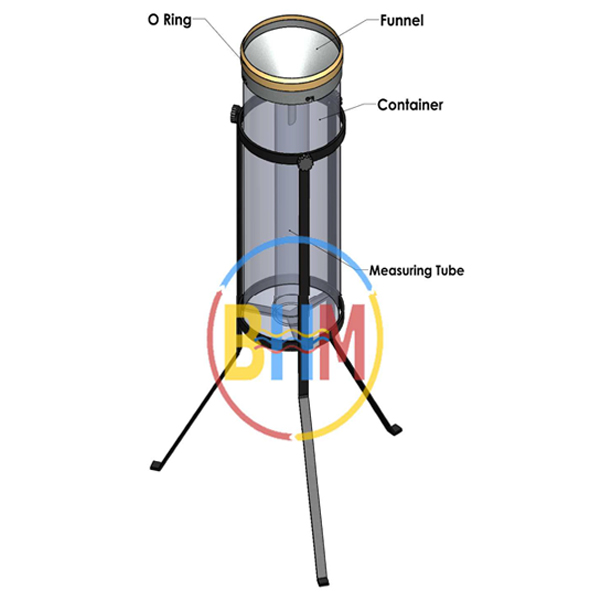

Rain Gauge View
Model BHM-M-SRG Rain Gauge Diameter 8” or (200 mm) Capacity 20 inches or 500 mm Standard As per National Weather Services Collection Area 314 CM² / WMO and NWS standard Measuring Can Aluminium and MS with white power coated Paint User Selectable before purchase Measuring Tube Bass with nickel and Transparent Acyclic Tube User Selectable before purchase Funnel Made of Aluminium having a Chamfered Edge Rim made of Gun Metal Black Powder coated Paint Measuring Stick Model [BHM-M-SRG-MSW] Made of Milky White Resolution 0.01 inches and 0.20 millimetres Measuring Stick Model [BHM-M-SRG-MSB] Made of black fibreglass Epoxy Resolution 0.01 inches and 0.20 millimetres Measuring Cylinder Model [BHM-M-SRG-MJ] 20 mm capacity Glass Measuring jar Resolution 0.1 mm up to 1 mm rainfall after that 0.20mm resolution rest of the 20 mm Temp Range -30°C to 60°C Weight 13 lbs / 16 lbs (6.200 kg / 8.5 kg) Mounting A Tripod Stand Model BHM-M-SRG-S made MS power coated provided Stainless steel stand (Optional) Dimension 8.25" diameter x 25.75" height (210 x 655 mm) -
Water Resource ManagementsMeteorologicalHydrometeorologicalWater Treatments, Dams & ReserviorsEnvironmental, Hydrological & Air Quality Monitoring
-
Ordering Information
Model BHM-M-SRG Rain Gauge Diameter 8” or (200 mm) Capacity 20 inches or 500 mm Temp Range -30°C to 60°C Dimension 8.25" diameter x 25.75" height (210 x 655 mm)
