Automatic Water Level Recorder
To Get Product Price Request a Quote
In Stock

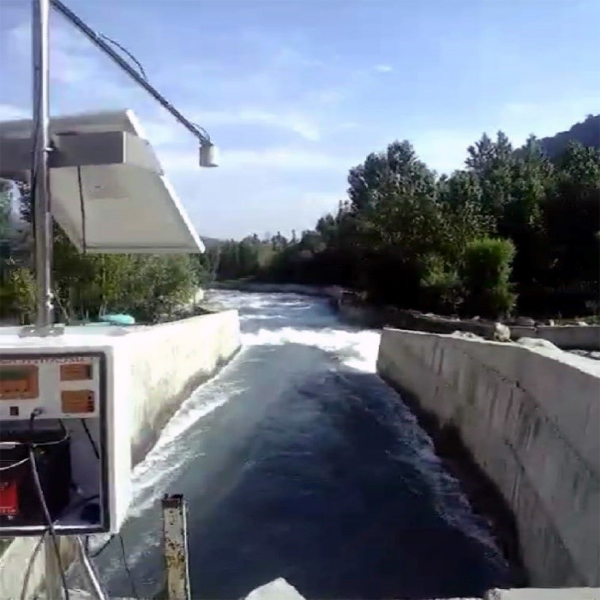

BHM Make Radar Water Level Sensor model: BHM-S-WL-RADAR outputs signal in form of the communication medium RS232/RS485/4-20 mA and SDI-12 etc to indicate distance and stage. This output is acceptable for recording devices capability, including Balaji Hydro Met Dataloggers. BALAJI HydroMet makes model BHM-DL-compactv21.7 Datalogger having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact Series datalogger is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. Automatic Water Level Recorder Radar comes with the tripod stand, solar panel, GSM/GPRS modem for telemetry communication and battery an intelligent solar and AC power circuit make the system self-powered. Combination of the above called as model [BHM-H-WL-RD].
- Category : Water Level Monitoring
- Model Number : BHM-H-WL-RD
- Brand : Balaji Hydromet
-
Automatic Water Level Recorder
BHM Make Radar Water Level Sensor model: BHM-S-WL-RADAR outputs signal in form of the communication medium RS232/RS485/4-20 mA and SDI-12 etc to indicate distance and stage. This output is acceptable for recording devices capability, including Balaji Hydro Met Dataloggers. BALAJI HydroMet makes model BHM-DL-compactv21.7 Datalogger having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact Series datalogger is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. Automatic Water Level Recorder Radar comes with the tripod stand, solar panel, GSM/GPRS modem for telemetry communication and battery an intelligent solar and AC power circuit make the system self-powered. Combination of the above called as model [BHM-H-WL-RD]. -
Data Logger -View

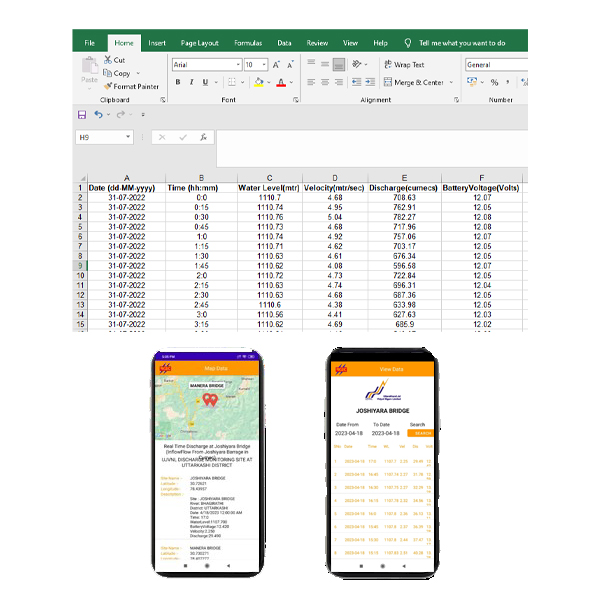

Model BHM-DL-compact V-21.7 Display 16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button) Measured Parameter Date, Time, Current Water Level (mm), maximum water level (mm), minimum water level (mm), Battery (volts) Real Time Clock Stability long-term: ±1 ppm / year Stability (temperature): ±3.5 ppm or better form -40° to 85°C Logging Rate 1 min to 1 hours Data Storage 16 GB (sufficient for more than 5 years of logging in 1 min. logging rate) Logger Input supply 5 volts Battery Life < 5 years in continuous operation Clock accuracy ±5 seconds per year Battery Charging Through solar panel or 220 Volts AC Keypad 1 x 4 on front of the datalogger programming check the sensors Realtime reading and Logger Programming through given keypad in front of the logger Operating Temp. -40°C to 75 °C Operation Humidity 0 to 95% no-condensing Logger Data Retrieval Through SD Card, Android App in your mobile and RS (485) optional Data Transmission GPRS telemetry or WIFI in IOT (optional) Watchdog timer System Reset Upon Microprocessor Failure Weatherproof encl. IP 67 weatherproof enclosure provides Optional Model BHM-COMPACT-BAT Output Voltage 5 Volts DC Protection Reverse Polarity, Battery over Charge Protection Battery over Discharged Protection Battery Backup Up to 12 days (If no sunlight due to clouds or haze weather) Model BHM-S-WL-RADAR Make BHM Casing Aluminum Mounting Universal bracket Model BHM-A-SSS Make BHM Material Stainless Steel Server Cloud based sever with purchaser User ID & Password Dashboard 1 year access from the date of Invoice DATA User detail, Mobile user, Device Detail, Device Data, Chart, Map, Alarm Data showing In different color for more understanding Minimum (Blue), Normal (Green), Warning (yellow), Alert (Red) Data Graph/Chart Maximum Water level (mm), Minimum water level (mm), current water level (mm) Flood Data SMS Alert User selectable the Alarm Range (for Flood) And Registered SMS Alert maximum 5 mobile number through User dashboard. Android APP (Optional) Download the App from dashboard and Register the Mobile User App show the real time data, All Listed Device and location map Site Detail All more than 10 Station Cover under single user ID and password -
Monitoring of river water levelReservoir water level monitoringEnvironmental protection sewage level monitoringBasement water level monitoringFarmland irrigation water level monitoringMonitoring of water level and flow of reservoir gateOpen channel, underdrain water level and flow monitoringWater level and flow monitoring of sewage pipe networkMonitoring of water level and flow of mountain rainstorm floodLake water level monitoringRoad and bridge water level monitoringUrban flood control level and flow monitoringTide level monitoring
-
Ordering Information
Model BHM-DL-compact V-21.7 Display 16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button) Battery Charging Through solar panel or 220 Volts AC Model BHM-COMPACT-BAT Battery Type & Life Lithium-ion battery with more than 2 years Battery Backup Up to 12 days (If no sunlight due to clouds or haze weather) Model BHM-S-WL-RADAR Casing Aluminum Mounting Universal bracket Model BHM-A-SSS Material Stainless Steel
