Automatic Weather Station [6 in 1 ]

₹ 120000.00 ~~₹ 130000.00~~ 8%off

Product Availability: In Stock

Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. AWS Compact series all model comes with the tripod stand, solar panel and battery an intelligent solar and AC power circuit make the system self-powered.

Category : Weather Station
Model Number : BHMcompact6in1
Brand : Balaji Hydromet

Qty:

Automatic Weather Station [6 in 1 ]

Compact Series AWS having the industrial grade micro controller ensure the reliability, accuracy and continuous performance in the toughest weather condition. Compact series AWS is the best choice for the research works in the market. Design makes easy to installed by one person and reduce the transportation cost. AWS Compact series all model comes with the tripod stand, solar panel and battery an intelligent solar and AC power circuit make the system self-powered.Model BHM-Compact-6 in1 data Logger having the facility of the measuring the Temperature, Wind Speed, Wind Direction, Relative Humidity, Dew Point, barometric pressure and Rainfall. All the above model measuring the Data logger for the collection of real time data automatically. 16 X 2 alphanumeric display and 1 X 4 keypad is provided at front of data logger for programming data logger and monitoring sensor reading at site without the help of computer.

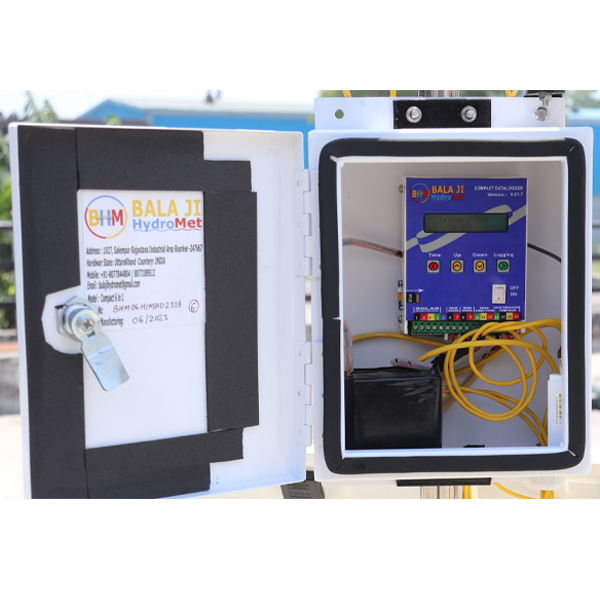

DATA LOGGER -VIEW

Model	Compact-datalogger version v-21.7
Display	16 Characters x 2 Lines alphanumeric display (Auto Light on when touch the keypad button)
Measured Parameter	Date, Time, Air Temp. (°C), Max Air Temp.(°C), Min Air Temp. (°C), RH (%), Max RH (%), Min RH (%), Wind Speed (m/s), Maximum wind speed (m/s), average wind speed (m/s), Wind Direction (Deg), Rainfall (mm), Air Pressure (hpa), Dew Point (°C), Battery (volts)
Real Time Clock	Stability long-term: ±1 ppm / year Stability (temperature): ±3.5 ppm or better form -40° to 85°C
Logging Rate	1 min to 1 hours
Data Storage	16 GB (sufficient for more than 5 years of logging in 1 min. logging rate)
Logger Power supply	5 volts
RTC Battery Life	< 5 years in continuous operation
Clock accuracy	±5 seconds per year
Keypad	1 x 4 on front of the datalogger programming and check the sensors Realtime reading
Logger Programming	Through given keypad in front of the logger
IP rating	IP 65
Operating Temp.	-40°C to 75 °C
Operation Humidity	0 to 95% no-condensing
Data Retrieval	SD Card and RS 485 (Optional) No need of any software direct copy and past
Data Transmission	GPRS telemetry OR WIFI in IOT (optional)
Watchdog timer	System Reset Upon Microprocessor Failure
Weatherproof Encl.	IP 67 weatherproof enclosure provides Optional
Model	BHM-COMPACT-BAT
Output Voltage	5 Volts DC
Protection	Reverse Polarity Battery over Charge Protection Battery over Discharged Protection
Battery Charging	Provided Inbuild solar charging Circuit through Battery management System OR 220 volts AC supply (optional)
Battery Life	More than 2 years
Battery Voltage & Amp	5 volts and 20 AMP
Advance Feature	Soft Start Charging or good health of battery Battery Temperature measurement inside Disconnect charging when temperature of batter goes high than normal
Solar Pannel	6 volts 2 Amp
Measuring range temperature	-40° C to 123 ° C
Measuring humidity	0 to 100 %
Accuracy temperature	± 0.3 ° C @ 5 to 40° C
Accuracy rel. humidity	± 2% @ 20 to 80 %
Resolution of temperature	0.01 ° C Typical

Water Resource Managements

Meteorological

Hydrometeorological

Water Treatments, Dams & Reserviors

Environmental, Hydrological & Air Quality Monitoring

Ordering Information

BHM-compact-Datalogger	DATALOGGER
BHM-S-THA	Temperature, Humidity and Air Pressure Sensor
BHM-S-WS	Wind Speed Sensor
BHM-S-WD	Wind Direction Sensor
BHM-S-TBRG-5	Rainfall Sensor
BHM-A-SSS	Stainless Steel Stand
BHM-A-SP	Solar Panel
BHM-compact-BAT	Battery with charging
